A083-241-4/CN-BR Oil cooler
Réf: A083-241-4/CN-BR

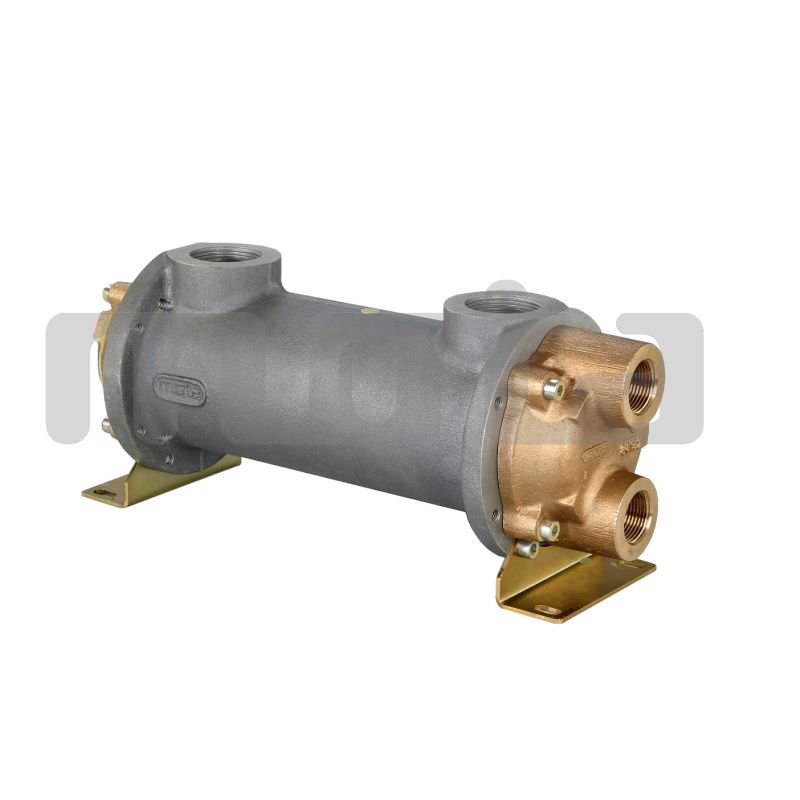

"A" range Oil cooler, also called UNIVEX A093-241
Diametre Ø83mm, length 241mm, 4 passes on cold side, copper-nickel tubes and bronze covers
Data sheet
- Cold side anodes
- No anode
- Hot side connexion
- 1\" 1/2 Rp
- Cold side connexion
- 3/4\" Rp
- Tubes diameter (mm)
- 6
- Tubestack diameter (Ømm)
- 83
- Hot side drains
- No
- Colde side drains
- No
- Range
- A range
- Tubestack length (mm)
- 241
- Covers material (water cover)
- Bronze
- Header material
- Brass
- Tubes material
- CuNi
- Housing material
- Anodized aluminium
- Number of passes (colde side)
- 4
- Number of tubes
- 78
- Cold side flow range ( L/min )
- 10 - 20
20 - 30
20 - 40
45 - 60
60 - 75 - Type of cooler
- Heat exchangers (water / oil / fuel)
- Connexion type (cold side)
- Threading
- Liquid type (cold side)
- Untreated water (sea type)
- Sector of activity
- Industrial application
Marine
Stationary engines
Transmissions
Vehicles - Advantages
- Anti corrosion
Easy maintenance
Sector of activity
Advantages
"A" range Oil cooler, also called UNIVEX A093-241
Diametre Ø83mm, length 241mm, 4 passes on cold side, copper-nickel tubes and bronze covers
