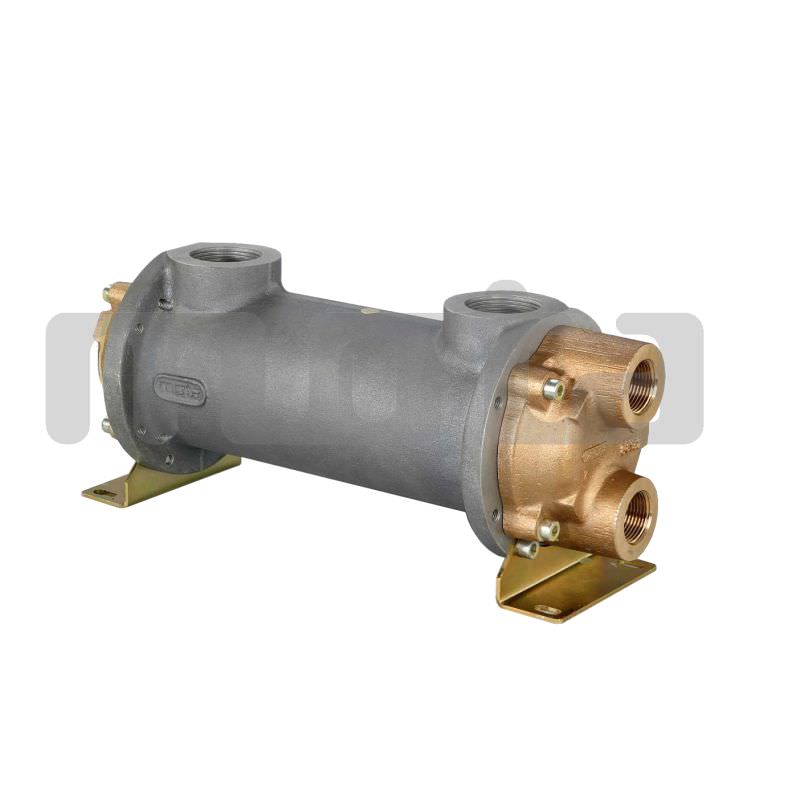

A104-314-4/CN-BR Oil cooler

Data sheet

Cold side anodes

No anode

Hot side connexion

1\" 1/2 Rp

Cold side connexion

1\" Rp

Tubes diameter (mm)

6

Tubestack diameter (Ømm)

104

Hot side drains

No

Colde side drains

No

Range

A range

Tubestack length (mm)

314

Covers material (water cover)

Bronze

Header material

Brass

Tubes material

CuNi

Housing material

Anodized aluminium

Number of passes (colde side)

4

Number of tubes

132

Cold side flow range ( L/min )

10 - 20
20 - 30
20 - 40
45 - 60
60 - 75
75 - 100

Type of cooler

Heat exchangers (water / oil / fuel)

Connexion type (cold side)

Threading

Liquid type (cold side)

Untreated water (sea type)

Sector of activity

Industrial application
Marine
Stationary engines
Transmissions
Vehicles

Advantages

Anti corrosion
Easy maintenance
