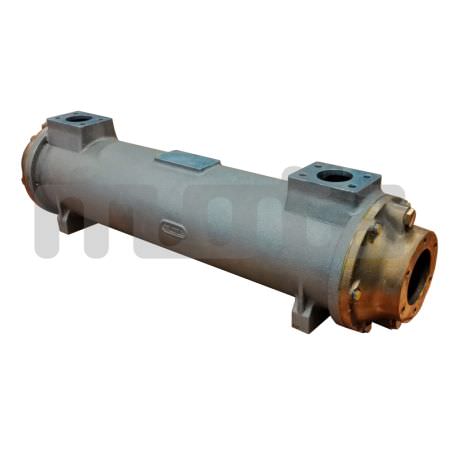

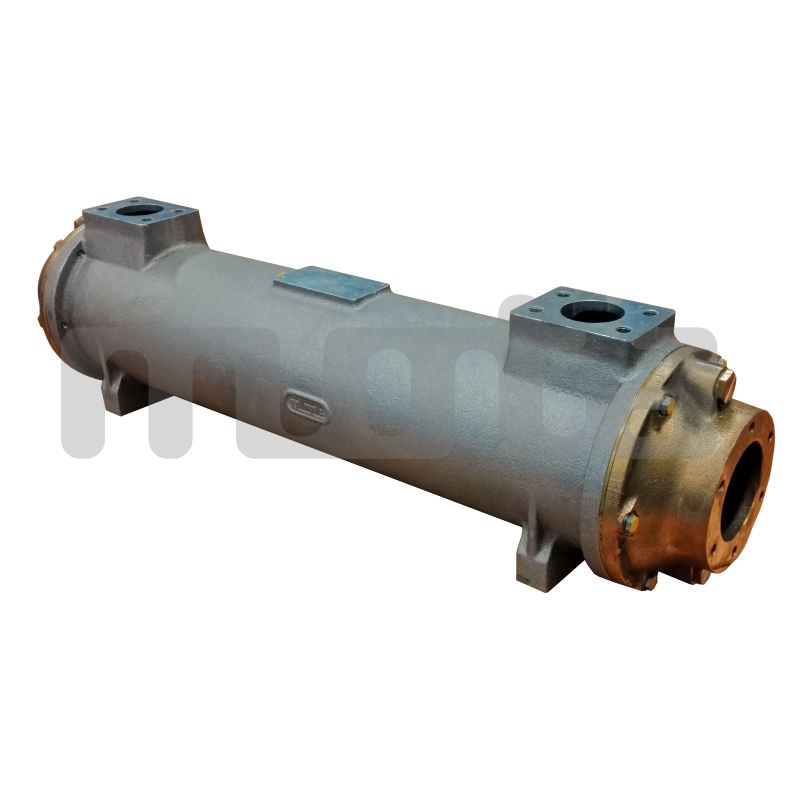

C158-727-1/HP Oil cooler (ex 18016)

Data sheet

Cold side anodes

No anode

Hot side connexion

Flange

Cold side connexion

Flange

Tubes diameter (mm)

5

Tubestack diameter (Ømm)

158

Hot side drains

Yes

Colde side drains

Yes

Range

C range

Tubestack length (mm)

720

Covers material (water cover)

Aluminium

Header material

Brass

Tubes material

Cu

Housing material

Aluminium

Number of passes (colde side)

1

Number of tubes

570

Cold side flow range ( L/min )

45 - 60

Type of cooler

Heat exchangers (water / oil / fuel)

Connexion type (cold side)

Hose

Liquid type (cold side)

Treated water (glycol type)

Advantages

Easy maintenance
High power
