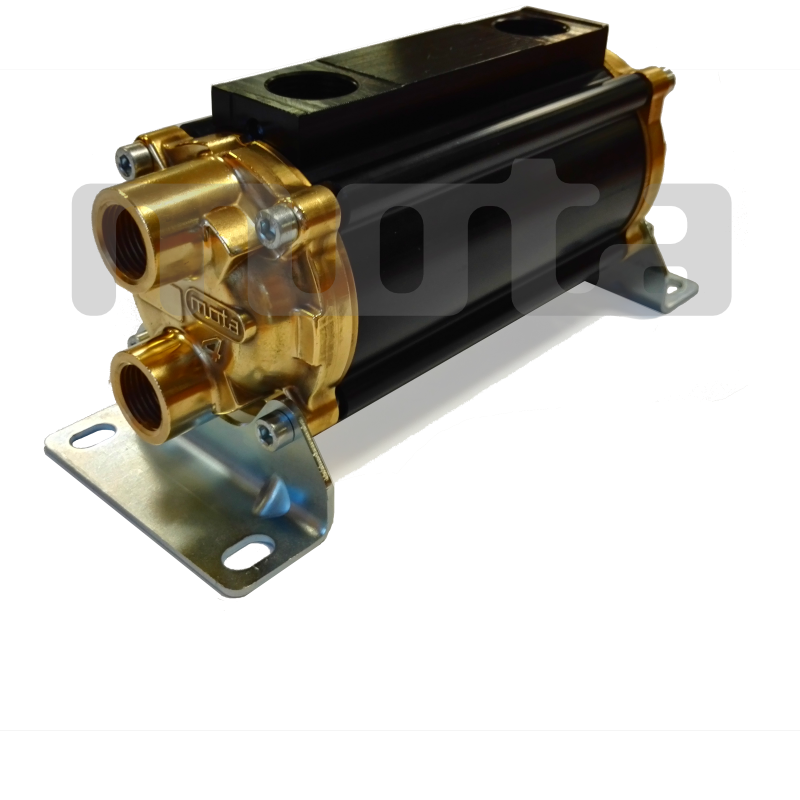

E065-161-4 Hydraulic oil cooler, standard version
Réf: E065-161-4
Our new standard range of oil coolers has been designed to maintain all aspects that made MOTA success, while optimizing all aspects to improve cost::
- Reliability:
Best features gained from extensive experience (+40 years), such as floating bundle to prevent thermal stress, double o-ring sealing to ensure a complete safety toward fluid-mixing , double leak-test of coolers to guarantee a leak-free cooler
- Performance:
All MOTA know-how in performance design validated by OEM applications, integrated to optimize standard coolerss.
- Modularity:
Only pay for what you need: select the size, features, material and arrangements in available conbinations to match your specific requirements
- Maintenance:
Dismountable coolers for maintenance and available spare parts if necessary
Data sheet
- Cold side anodes
- No anode
- Hot side connexion
- 3/4\" Rp
- Cold side connexion
- 1/2\" Rp
- Tubes diameter (mm)
- 6
- Tubestack diameter (Ømm)
- 65
- Hot side drains
- No
- Colde side drains
- No
- Range
- E range
- Tubestack length (mm)
- 161
- Covers material (water cover)
- Brass
- Header material
- Brass
- Tubes material
- Cu
- Housing material
- Anodized aluminium, black
- Number of passes (colde side)
- 4
- Number of tubes
- 52
- Cold side flow range ( L/min )
- 10 - 20
20 - 40 - Type of cooler
- Heat exchangers (water / oil / fuel)
- Connexion type (cold side)
- Threading
- Liquid type (cold side)
- Treated water (glycol type)
- Sector of activity
- Industrial application
Stationary engines
Transmissions
Vehicles - Advantages
- Easy maintenance
Sector of activity
Advantages
"E" range Oil cooler with Ø65mm diametre, 161mm length and 4 passes on cold side.
Standard version, with copper tubes and brass covers.
